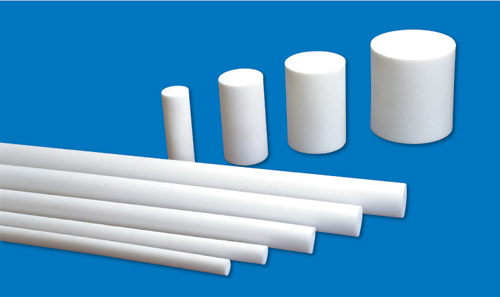

PTFE Rod

Discover Kaxite Sealing's PTFE Rod, a high-performance sealing solution for industrial applications. Made from durable polytetrafluoroethylene, it offers excellent chemical resistance and low friction, ideal for engineers and technicians in demanding environments. This rod ensures reliable performance, reduces downtime, and enhances safety, standing out with its superior quality and affordability. Upgrade your projects today.

Send Inquiry

Product Description

[ Features ]

There are two kinds of PTFE rods to offer. One is manufactured by Paste extruding method in the diameter from 4 to 9mm and the other Is made by ram extruding method is the diameter from 10to 50mm; rods Over the diameter 50mm are manufactured by moulding. PTFE is the most chemical-resistant of all known plastics. It does not age.
PTFE has a wide range of practicable temperature from 180%

- +260

and a wax-like surface to which anything hardly sticks.
PTFE has the lowest coefficient of friction of all known solid materials. It has the best electrical properties of all plastics.

[ Specifications ]

TYPES	Diameter(mm)		Length(mm)
	Nominal	Tolerance	Nominal	Tolerance
SFFBN	4,5,6	+0.48 0	100	+5.0
	7,8,9	+0.58 0
SFxBN	10,13,15 16,18	+1.10 0	1000	+3.60
	20,25,30	+1.30 0
	35,40,45 50	+1.60 0
	55,60,65,70,75 80,85,90,100	+2.00 0	1000	+2.50
	110,120,130 140,150	+2.50 0
	180,200,250 270,300	+3.0 0	300	+2.0

[ Main properties ]

Properties	Unit	Result
Apparent density	g/cm³	2.10-2.30
Tensile strength (min)	MPa	14.0
Ultimate elongation (min)	%	140

Note: When the diameter of rod is larger than 16mm.only test Apparent density

[ Applications ]

Electrical Insulation,seal,Antisticking materials.
