Discover Premium Quality PTFE Tubing from a Factory in China for Your Industrial Needs and B2B Applications

What is a PTFE Tube?

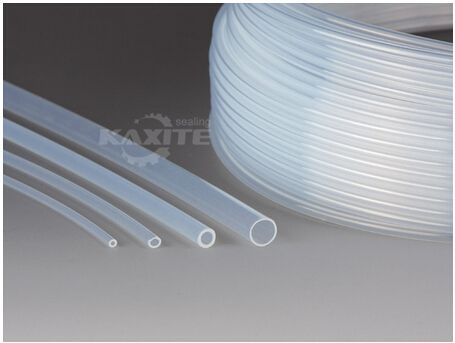

Polytetrafluoroethylene, universally known as PTFE or by the brand name Teflon®, is a high-performance fluoropolymer celebrated for its exceptional chemical resistance, superb non-stick properties, and ability to withstand extreme temperatures. A PTFE tube, therefore, is a flexible, semi-translucent hose manufactured from this remarkable material. At Kaxite Sealing, we engineer our PTFE tubes to meet the rigorous demands of modern industry, offering unparalleled reliability for fluid transfer, insulation, and lining applications where other materials would fail. These tubes are inert to nearly all aggressive chemicals, maintain flexibility from cryogenic levels up to +260°C (+500°F), and exhibit an extremely low coefficient of friction, ensuring minimal flow resistance and preventing clogging or build-up.

The manufacturing process involves extruding fine-grained PTFE resin, resulting in a seamless, continuous liner with a smooth bore. This process is critical as it eliminates seams or weak points that could become failure sites under pressure or chemical attack. Kaxite Sealing's dedication to precision extrusion ensures our tubes deliver consistent performance, batch after batch. Whether used as a standalone conduit for ultra-pure or corrosive fluids, as a protective sleeve for wires and sensors in harsh environments, or as a liner within metal hoses to provide chemical resistance, the PTFE tube is a cornerstone component in chemical processing, pharmaceuticals, food and beverage, automotive, and semiconductor manufacturing.

Key Product Parameters and Specifications

Selecting the correct PTFE tube requires careful consideration of its physical and performance characteristics. Kaxite Sealing provides a comprehensive range of tubes, and the following parameters are essential for specifying the right product for your application.

Standard Material Properties

• Material: 100% Virgin PTFE (Polytetrafluoroethylene), compliant with FDA and USP Class VI standards for purity.
• Color: Natural white (semi-translucent). Custom colors are available upon request for coding or identification purposes.
• Operating Temperature Range: -200°C to +260°C (-328°F to +500°F). Excellent thermal stability with minimal expansion/contraction.
• Melting Point: Approximately 327°C (621°F). The material does not melt but begins to degrade above 260°C.
• Dielectric Strength: > 40 kV/mm, making it an outstanding electrical insulator.
• Flammability: Non-flammable (UL94 V-0 rated). Self-extinguishing.

Mechanical & Chemical Properties

Standard Dimensional Specifications

Kaxite Sealing offers a vast inventory of standard sizes. Tubes are defined by their Inner Diameter (ID) and Outer Diameter (OD). We can also produce custom sizes to meet specific design requirements.

*Pressure ratings are for guidance at 20°C (68°F). Ratings decrease with increasing temperature and are highly dependent on fitting type and installation. Always consult Kaxite Sealing engineering for critical applications.

Frequently Asked Questions (FAQ) About PTFE Tubes

Q: What is the primary advantage of using a PTFE tube over a rubber or PVC tube?

A: The core advantages are unmatched chemical resistance and extreme temperature capability. Rubber and PVC tubes degrade quickly when exposed to many solvents, acids, or high temperatures. A PTFE tube from Kaxite Sealing can handle aggressive fluids like concentrated sulfuric acid or chlorine at temperatures where other materials would melt, crack, or become permeable, ensuring long-term system integrity and safety.

Q: Can Kaxite Sealing PTFE tubes be used for food and pharmaceutical applications?

A: Absolutely. Our tubes manufactured from virgin PTFE resin are compliant with FDA 21 CFR 177.1550 and meet USP Class VI standards. This means they are non-toxic, odorless, tasteless, and will not leach contaminants, making them ideal for transferring sensitive ingredients, process fluids, or even in diagnostic equipment where purity is paramount.

Q: How do I connect or fit a PTFE tube? It seems very slippery.

A: The low friction surface can make connections challenging with standard hose barbs. The most reliable methods are using compression fittings (e.g., Swagelok® style) designed for soft tubing, which create a seal by compressing a ferrule onto the tube's outer diameter. For permanent installations, flaring the tube end or using specialized adhesive bonding systems for fluoropolymers are options. Kaxite Sealing can provide guidance and compatible fitting recommendations for your assembly.

Q: What are the limits of PTFE tubing regarding pressure and vacuum?

A: PTFE is a semi-rigid, creep-sensitive material. Its pressure rating is relatively low compared to reinforced hydraulic hose but is sufficient for many fluid transfer applications, as shown in our specifications table. It excels in vacuum service due to its extremely low outgassing properties. At high vacuum levels (e.g., in semiconductor fabrication), PTFE tubing prevents contamination from volatile compounds that might off-gas from other plastics, making Kaxite Sealing tubes a preferred choice.

Q: Is PTFE tubing flexible? Can it be bent tightly?

A: PTFE tubing is flexible but has a minimum bend radius to avoid kinking or damaging the inner bore. As a rule of thumb, the minimum bend radius is approximately 5 times the outer diameter of the tube. For a 6mm OD tube, avoid bends tighter than a 30mm radius. For applications requiring very tight bends, consider using heat to gently form the tube to a new shape, or opt for a corrugated or convoluted PTFE hose design which offers greater flexibility.

Q: How does Kaxite Sealing ensure the quality and consistency of its PTFE tubes?

A: Quality is integral to our manufacturing process at Kaxite Sealing. We start with certified virgin PTFE resin from reputable suppliers. Our extrusion process is rigorously controlled, with continuous monitoring of dimensions using laser gauges. We perform batch testing on key properties like tensile strength, elongation, and dielectric strength. Furthermore, our tubes are 100% inspected for visual defects such as inclusions, cracks, or dimensional irregularities, ensuring you receive a product that performs as specified, every time.

Q: Can the tubes be customized in terms of length, color, or printing?

A: Yes, Kaxite Sealing specializes in providing tailored solutions. We supply tubes in continuous lengths on spools or cut to your precise specifications. We can produce tubes in custom colors (e.g., blue for medical oxygen, red for hot fluids) for easy identification. Permanent printing or laser marking of part numbers, size, or company logos is also available to meet traceability and asset management requirements in regulated industries.

Applications of Kaxite Sealing PTFE Tubes

The unique property set of PTFE opens doors to a multitude of demanding applications across diverse sectors. Kaxite Sealing tubes are trusted components in systems where failure is not an option.

• Chemical Processing: Transfer lines for acids, alkalis, solvents, and aggressive intermediates. Lining for sight glasses, dip tubes, and vent lines.
• Pharmaceutical & Biotechnology: Transfer of high-purity water (WFI), process solvents, and active pharmaceutical ingredients (APIs). Used in bioreactor vent lines and sterile connections.
• Food & Beverage: Lines for flavors, colors, oils, and cleaning-in-place (CIP) fluids. Its non-stick surface ensures easy cleaning and prevents bacterial harborage.
• Automotive & Aerospace: Fuel and oil vapor lines, air sampling tubes in hot engine compartments, and fluid lines in fuel cell systems.
• Semiconductor Manufacturing: Ultra-high-purity gas and chemical delivery lines, where extreme purity and low particle generation are critical.
• Analytical & Laboratory Equipment: Peristaltic pump tubing, connections for HPLC, GC, and autosamplers, handling a wide range of mobile phases and standards.
• Electrical & Energy: Insulating sleeving for wires and cables in high-temperature or corrosive environments. Used in solar panel manufacturing and battery research.
