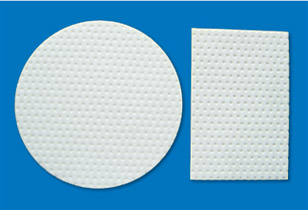

PTFE Bearing Slide

Kaxite Sealing's PTFE Bearing Slide delivers unmatched friction reduction and durability, perfect for industrial machinery and precision equipment. Its PTFE material ensures high-performance, reducing wear and noise, ideal for engineers and manufacturers seeking reliable motion solutions. Experience smoother, long-lasting operation that enhances efficiency and lowers maintenance costs. Choose Kaxite Sealing for a superior glide that sets the standard in quality and innovation.

Send Inquiry

Product Description

[ Features ]

PTFE bearing slide is made from high strength PTFE suspension resin by methods of moulding, sintering and finalizing the design to various sizes. Different fillings can be used to achieve special demands. It can also be adhered to rubber and metal with one side etched.
PTFE has very low coefficient of friction, it is anticorrosive and not aging, can be widely used in temperature from -180

to +260

[ Main properties ]

Properties	Unit	Result
Apparent density	g/cm³	2.10-2.25
Tensile strength (min)	MPa	30
Ultimate elongation (min)	%	250

[ Specifications ]

Round Type
Diameter(mm)	Thickness (mm)	Diameter(mm)	Thickness (mm)	Diameter(mm)	Thickness (mm)
Φ140	6-8	Φ240	6-8	Φ415	6-8
Φ150	6-8	Φ260	6-8	Φ636	6-8
Φ160	6-8	Φ300	6-8	Φ740	6-8
Φ180	6-8	Φ320	6-8	Φ852	6-8
Φ210	6-8	Φ340	6-8
