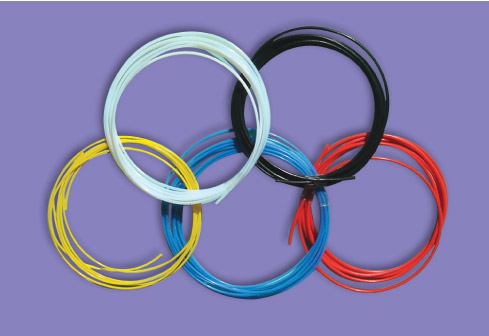

PTFE Extruded Tubing

PTFE Extruded Tubing

Discover Kaxite Sealing's PTFE Extruded Tubing, a durable and versatile solution for high-performance sealing and fluid transfer across industries. Engineered with premium PTFE material, it offers exceptional chemical resistance, low friction, and long-lasting reliability, ideal for demanding applications in aerospace, automotive, and medical fields. Experience enhanced efficiency and peace of mind with superior quality that outperforms competitors. Elevate your projects today—trust in innovation and excellence.
[ Features ]
PTFE extruded tubing is manufactured by high pressure PTFE dispense resin mixed with additive, it is extruded and sintered. According to different demands, the tubing could be opaque or translucent.
PTFE is well known for its chemical resistance, not aging, non stick, self-lubrication, insulation and wide working temperature range from -180 to +260. Because of these excellent properties, PTFE has a wide application in fields of chemical, mechanical, electronics, medical and aviation, etc.
[ Main properties ]

Properties

Unit

Result

Apparent density
g/cm3
2.10-2.20

Tensile strength (min)

MPa

20

Ultimate elongation (min)

%

200
Residual Lubricant Content (max)
%
0.5
Dialectric Strength (min)
KV/mm
10

PTFE Extruded Tubing
[ Applications ]
Used as wire and cable jacket, inner lined pipes for corrosive fluids and used in hydrochloric acid heat exchanger, etc.
[ Specifications ]
ODXID(mm)
Tolerance (mm)
ODXID(mm)
Tolerance (mm)
Φ0.8X0.4
0.08
Φ12X10
0.2
Φ1X0.5
0.08
Φ14X12
0.2
Φ2X1
0.08
Φ16X14
0.2
Φ4X2
0.1
Φ18X16
0.3
Φ6X4
0.1
Φ20X18
0.3
Φ8X6
0.1
Φ22X20
0.3
Φ10X8
0.1
Φ24X21
0.3
Hot Tags: PTFE Extruded Tubing Supplier, Teflon Extruded Tubing Factory, FEP Extruded Tubing Custom
